μo_C SE is a multi-purpose module in which a generic set of inputs and outputs are remapped on-the-fly through the use of a number of different built-in apps.
This re-engineered Eurorack module updates and simplifies the classic Ornament & Crime (aka o_C) design by miniaturizing the module from 14HP to 8HP and redesigning the front panel layout without eliminating any functionality.
Fully compatible with upstream o_C firmware. Includes power cable, mounting hardware, and a one-year warranty. Designed and built with care by Tall Dog Electronics in Western Massachusetts. Licensed CC BY-NC-SA 4.0 open source hardware.

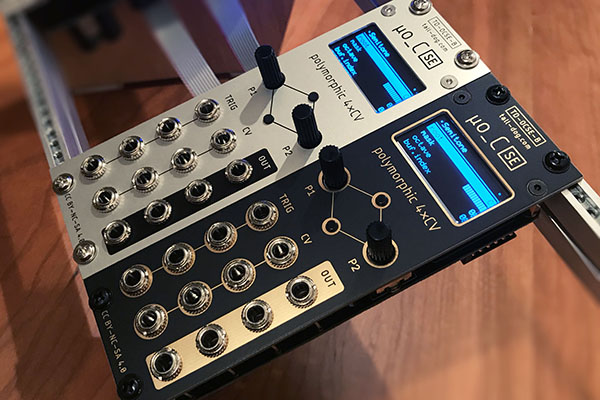

|Part number||Panel style||Panel material|
|TD-OCSE-B/B||Matte black, gold markings||Copper clad laminate|
|TD-OCSE-B/S||Satin silver, black markings||Anodized aluminum|
|Height||3U (128.5 mm)|
|Width||8HP (40.3 mm)|
|Depth||31 mm (with power)|
|+12V||85 mA (average)|
|-12V||10 mA (average)|
