μBraids SE is a voltage-controlled digital oscillator/sound source in 8HP with a wide range of creative and useful sound generation algorithms (aka models).

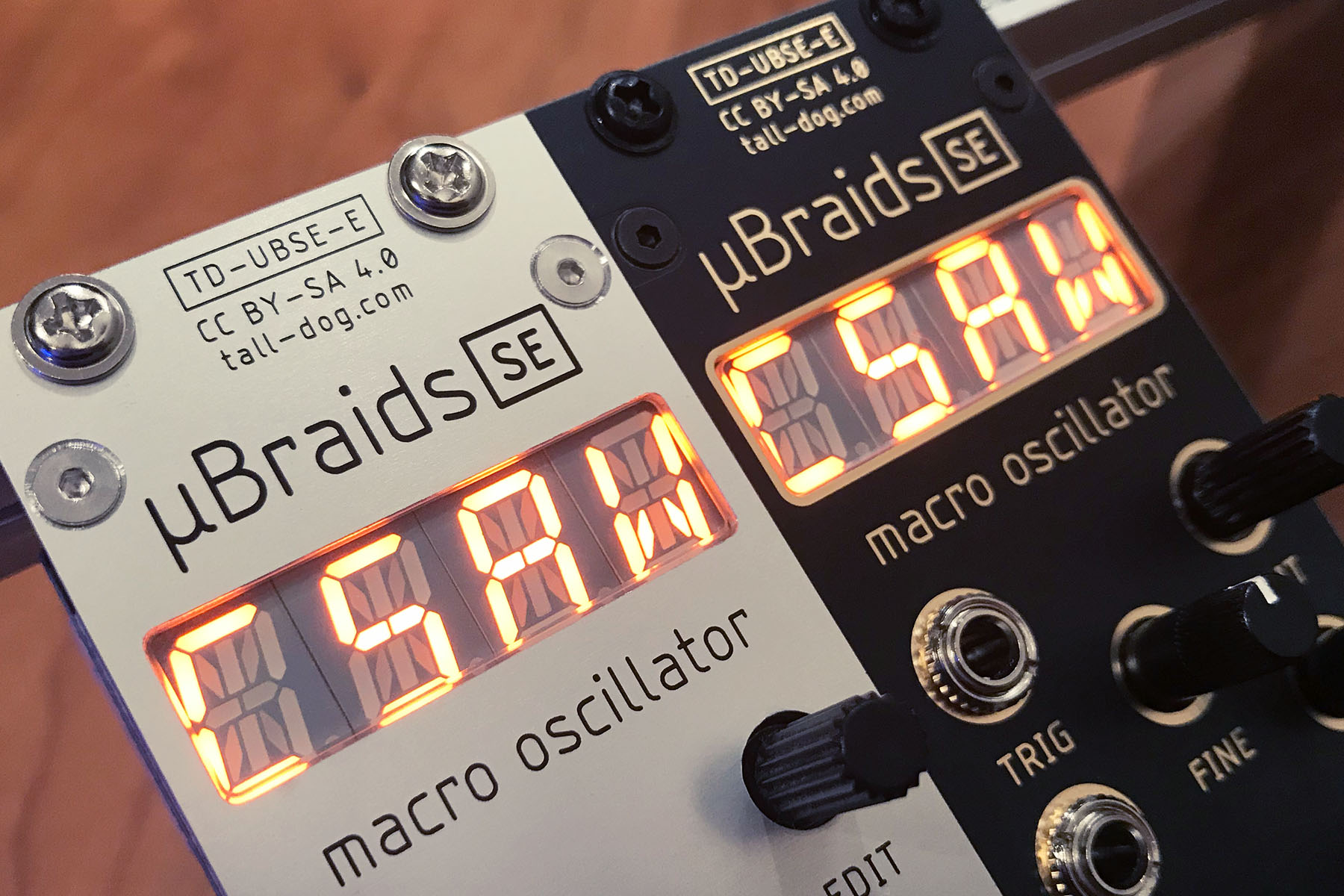

This re-engineered Eurorack module updates and simplifies the classic Mutable Instruments Braids design with a custom brilliant orange LED display module protected by a clear acrylic lens, a low-profile rotary encoder, and an added attenuverter.
Fully compatible with upstream Braids firmware. Includes power cable, mounting hardware, and a one-year warranty. Designed and built with care by Tall Dog Electronics in Western Massachusetts. Licensed CC BY-SA 4.0 open source hardware.
| $269 | Buy Now |
Resources
- Flyer PDF
- Manual PDF
- GitHub Repository
- ModularGrid Black / Silver

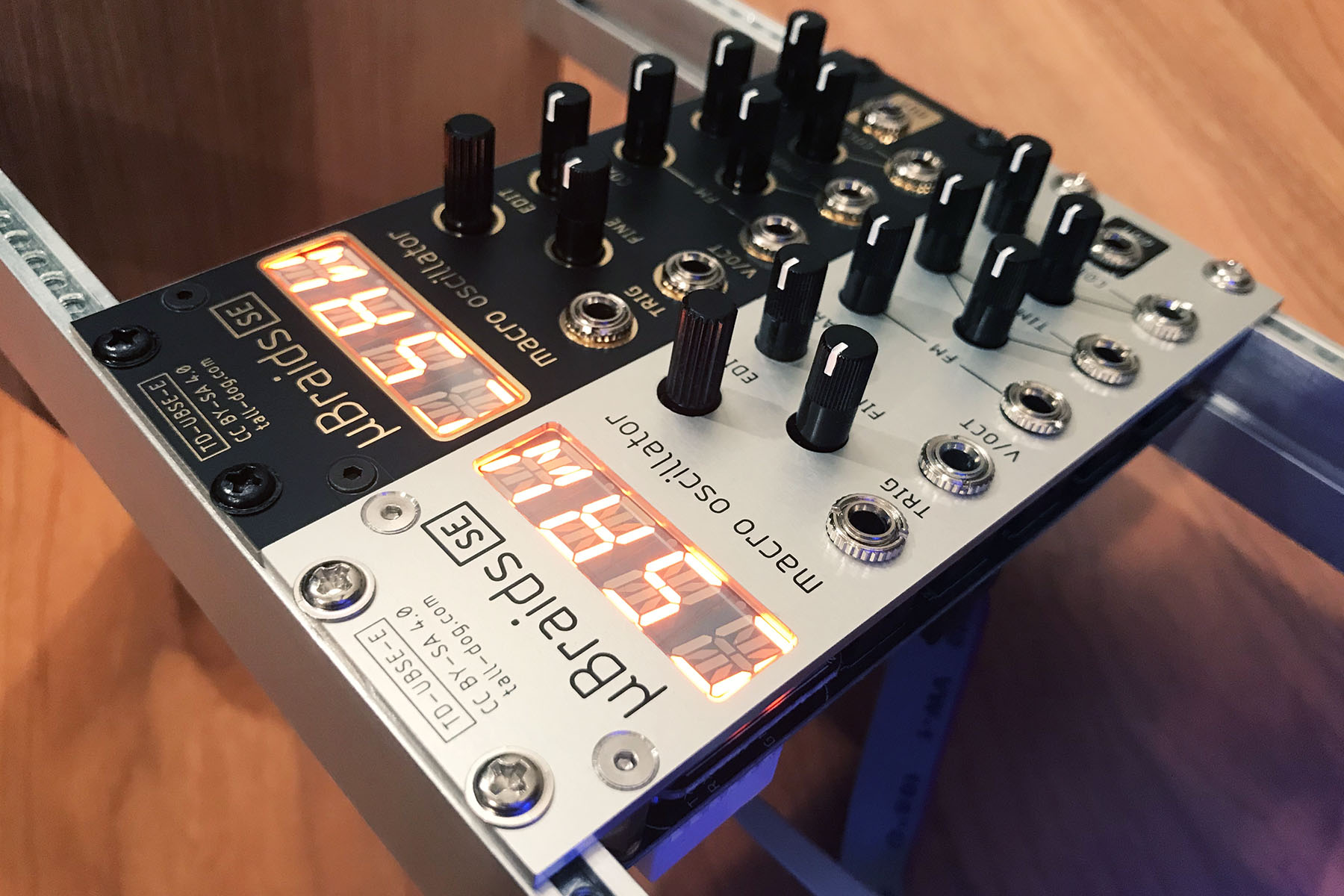

| Part number | Panel style | Panel material |
|---|---|---|

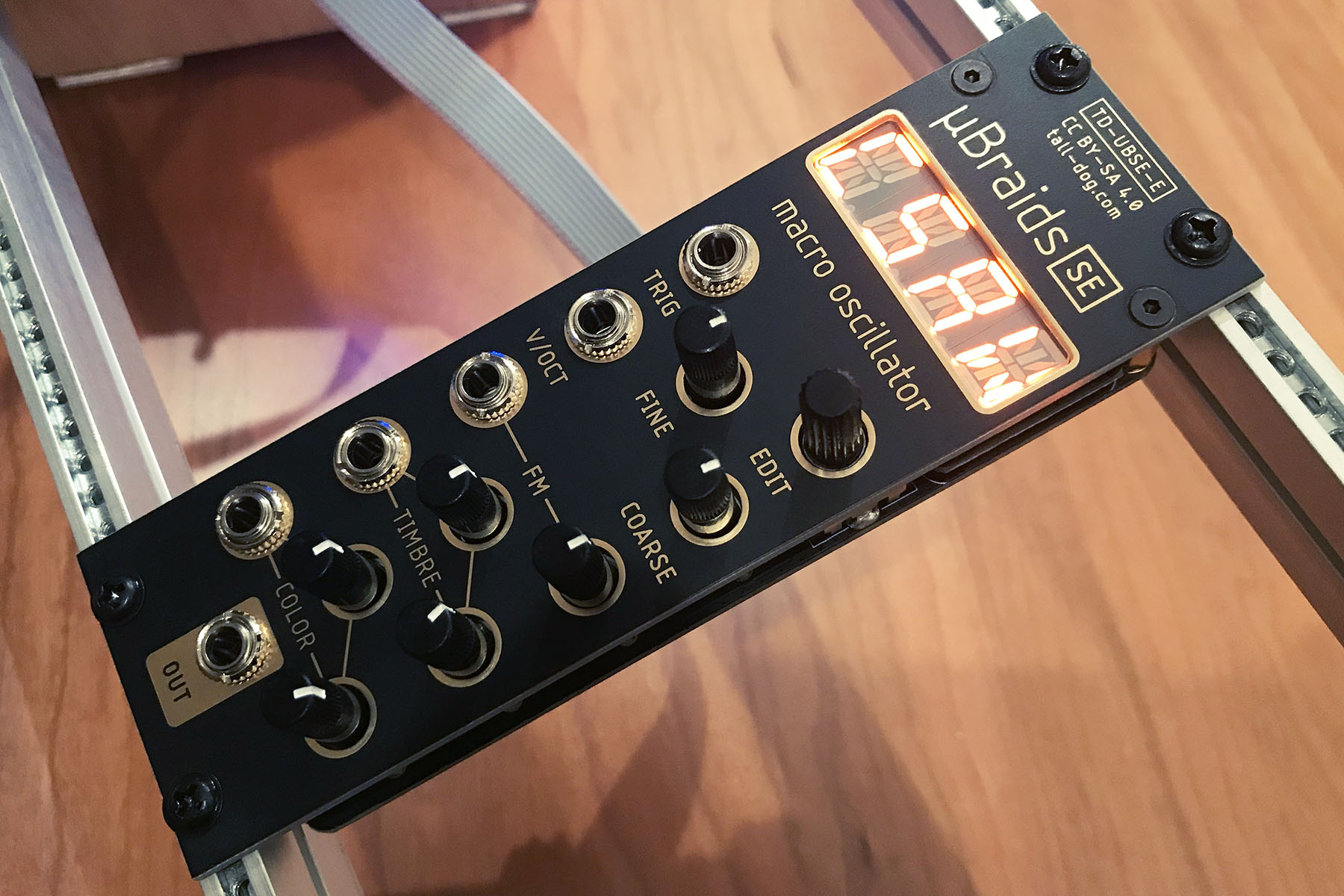

| TD-UBSE-E/B | Matte black, gold markings | Copper clad laminate |

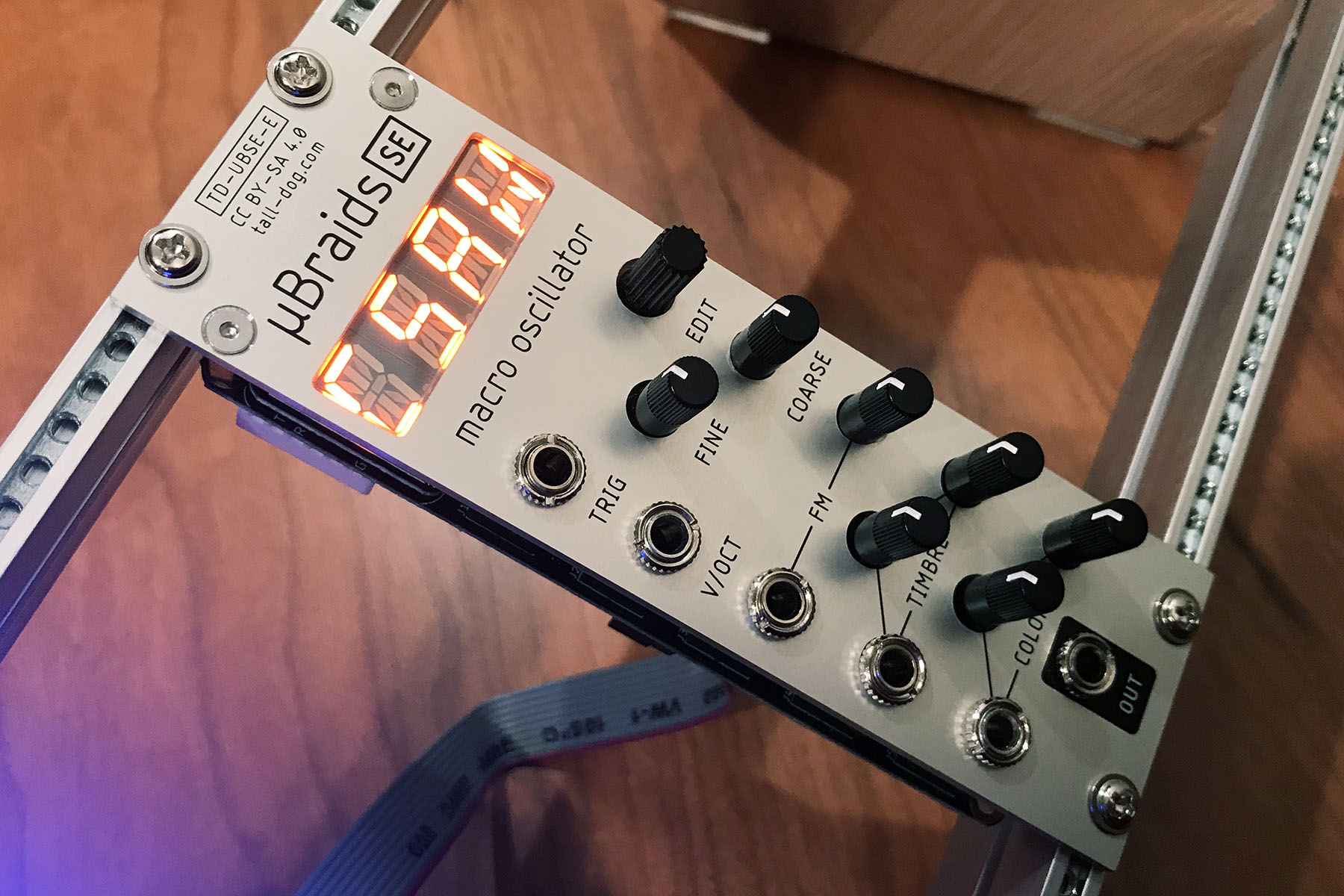

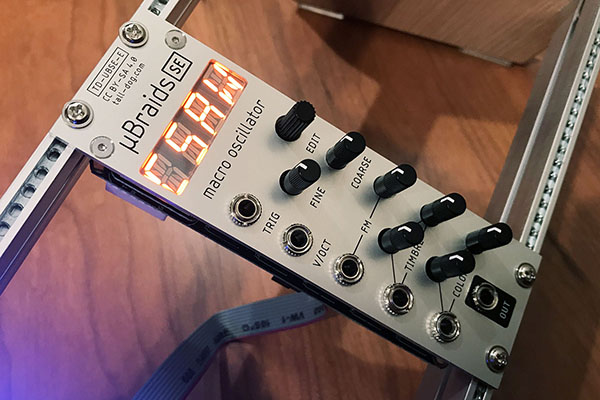

| TD-UBSE-E/S | Satin silver, black markings | Anodized aluminum |
| Height | 3U (128.5 mm) |
|---|---|
| Width | 8HP (40.3 mm) |
| Depth | 31 mm (with power) |
| +12V | 100 mA (average) |
| -12V | 15 mA (average) |
